ROBOT W550 Fume Extraction
Technical Parameter
Cooling mode:Water-cooled
Rated value:550A CO₂/ 500A MIXED GAS
Duty cycle:100%
Diameterof welding wires: 0.8-1.6mm
Angle of gun neck: 35°

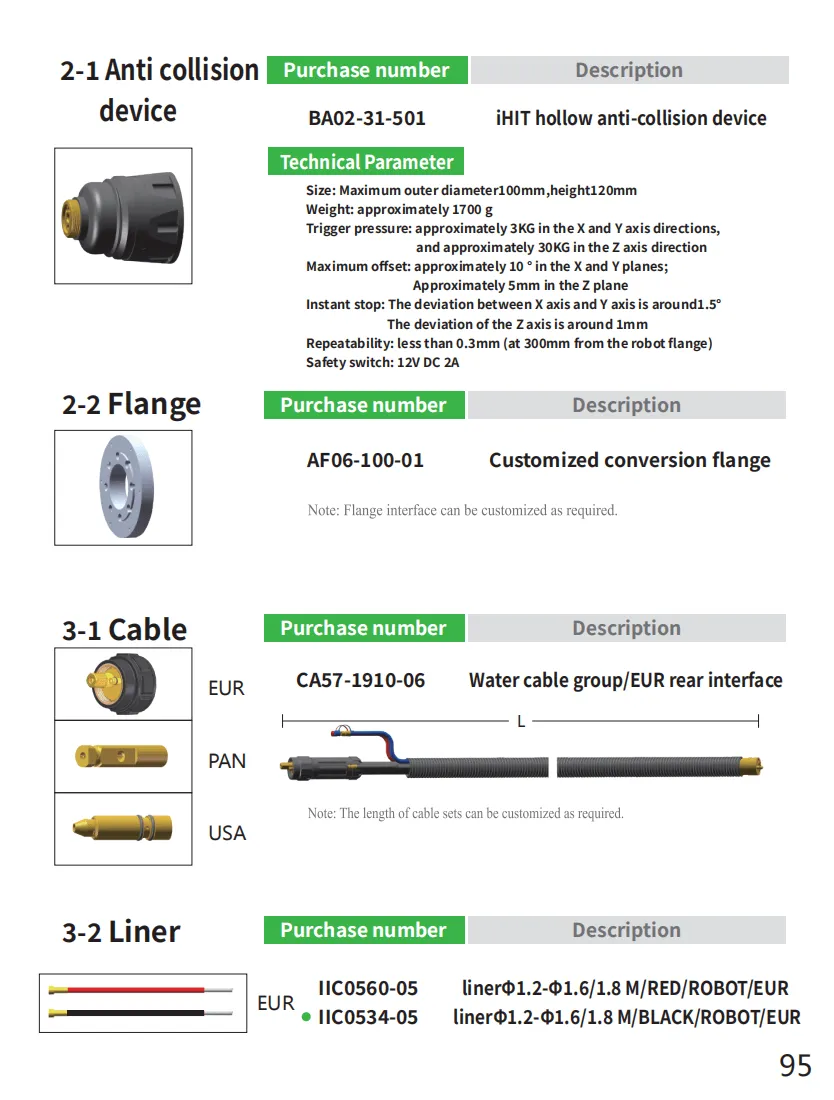

Instant stop: The deviation between X axis and Y axis is around 1.5°
The deviation of the Z axis is around 1mm

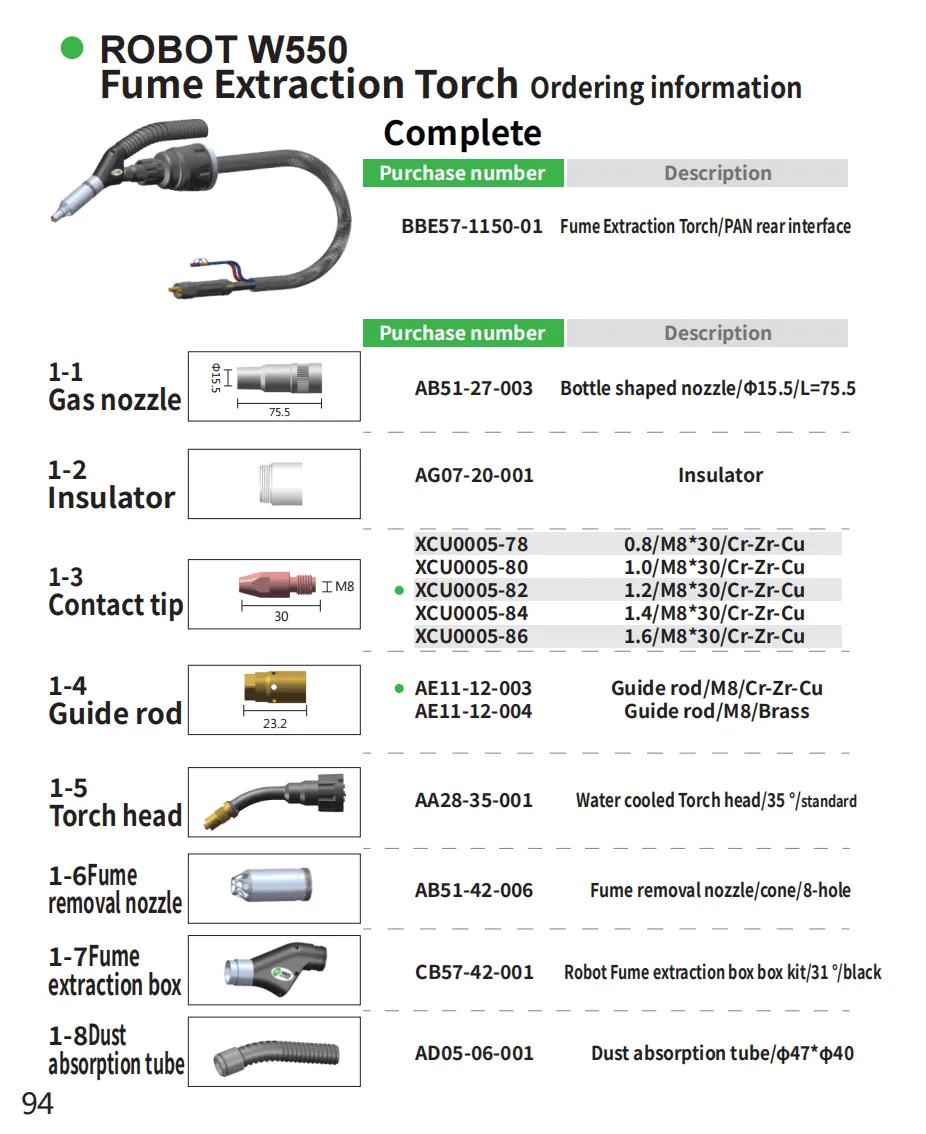

Procurement code
BBE57-1150-01

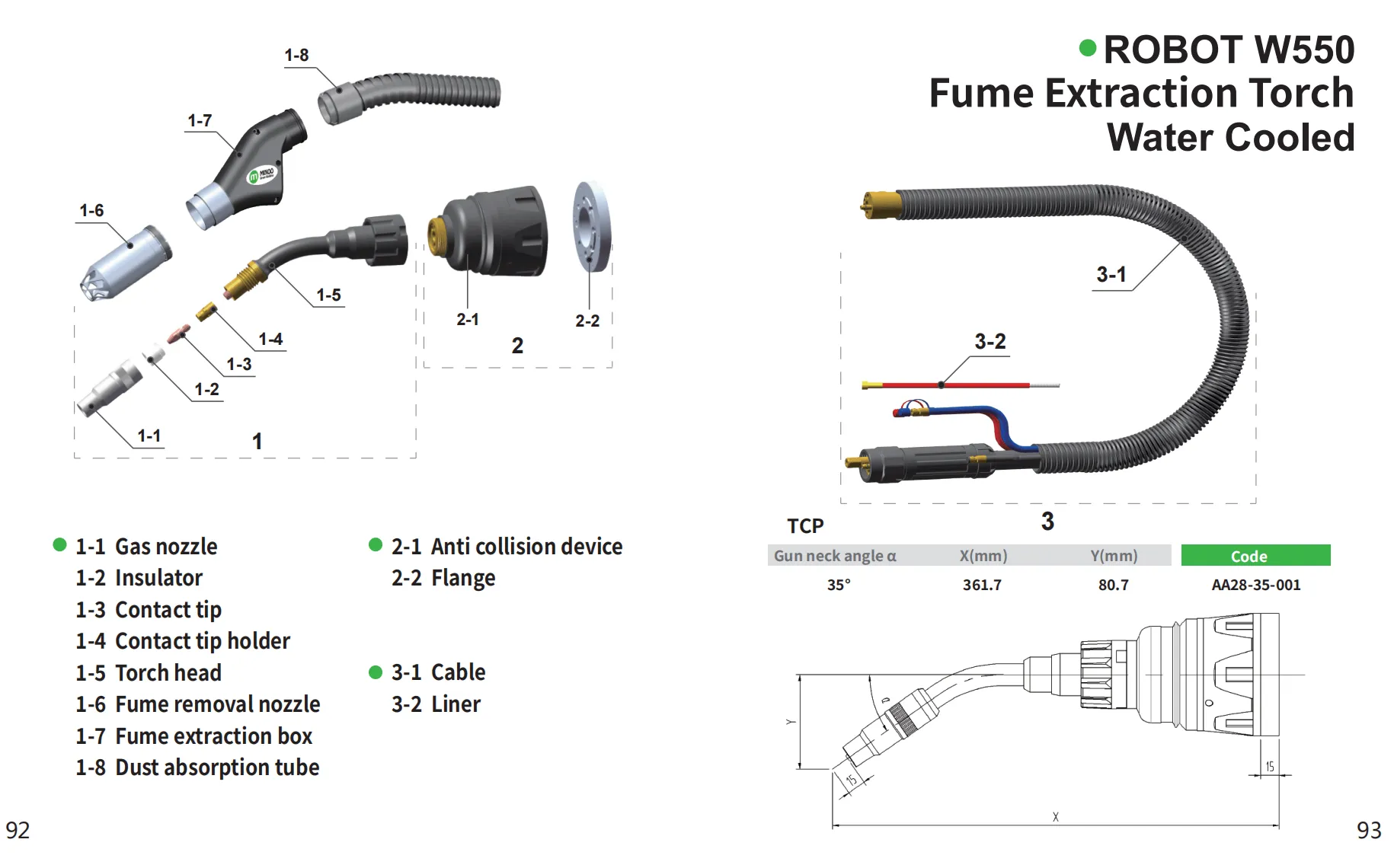

Fume Extraction Torch/PAN rear interface
Consumables procurement code(with”🔴”is the standard configuration)
