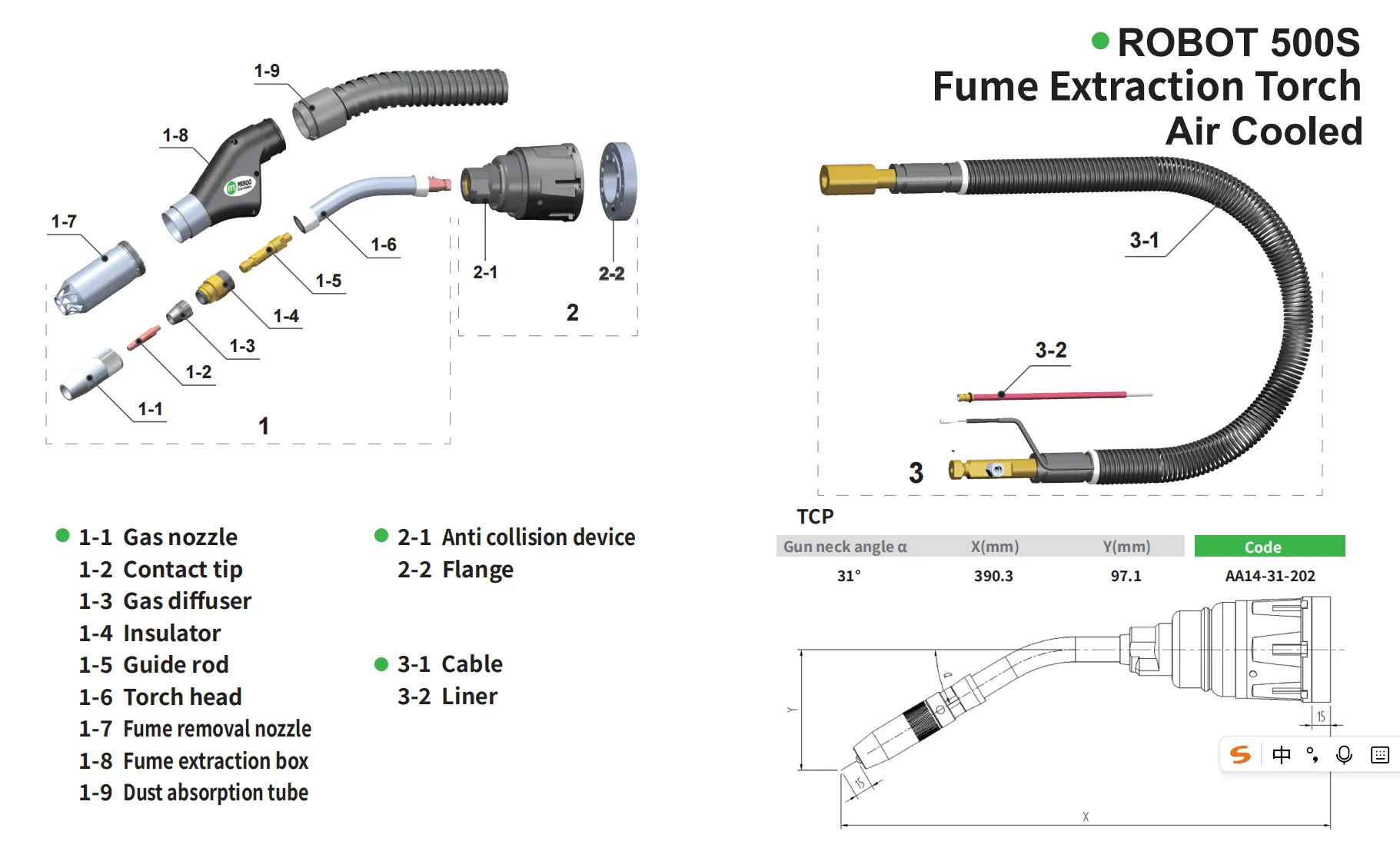

ROBOT 500S Fume Extraction
Technical Parameter
Cooling mode: Gas-cooled
Rated value:500A CO₂/ 400A MIXED GAS
Duty cycle: 60%
Diameterof welding wires: 1.2-1.6mm
Angle of gun neck: 31°
Instant stop: The deviation between X axis and Y axis is around 1.5°
The deviation of the Z axis is around 1mm

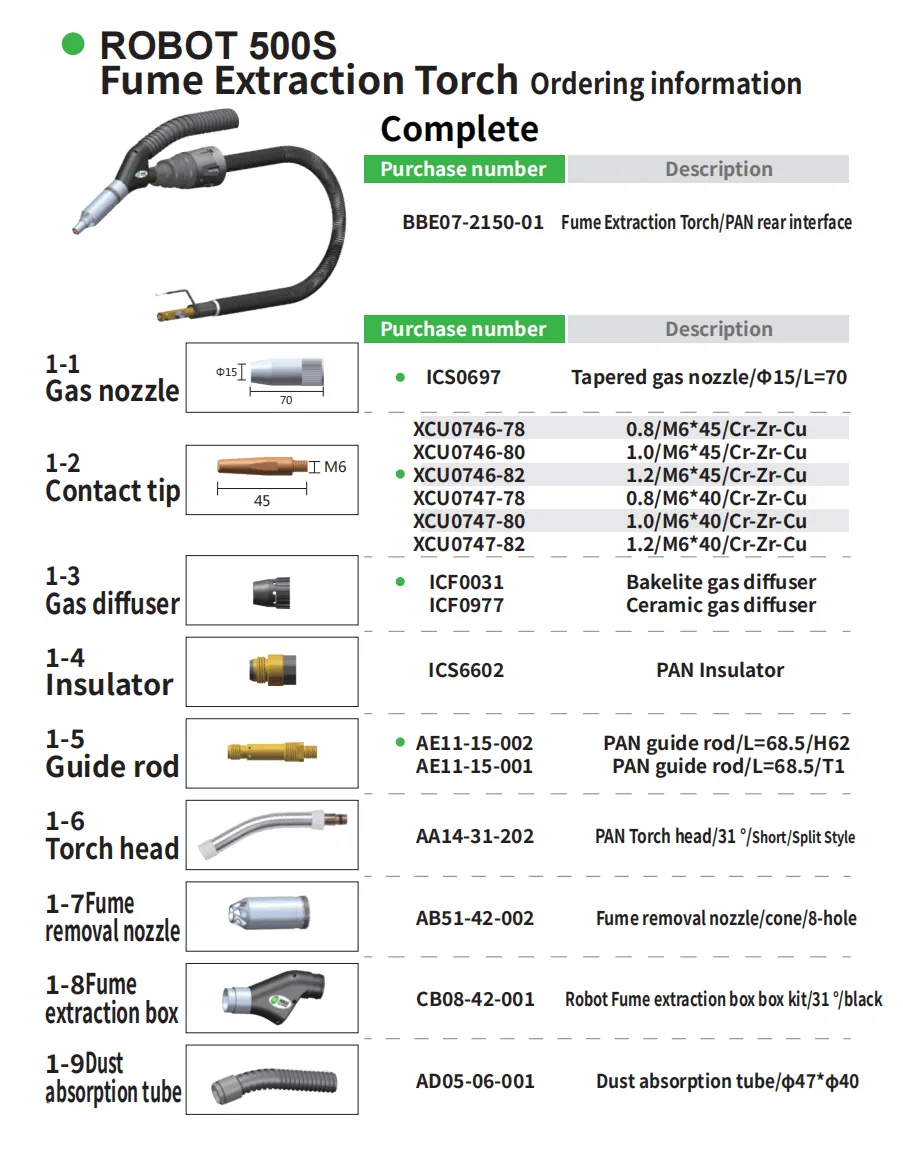

Procurement code
BBE07-2150-01
Fume Extraction Torch/PAN rear interface

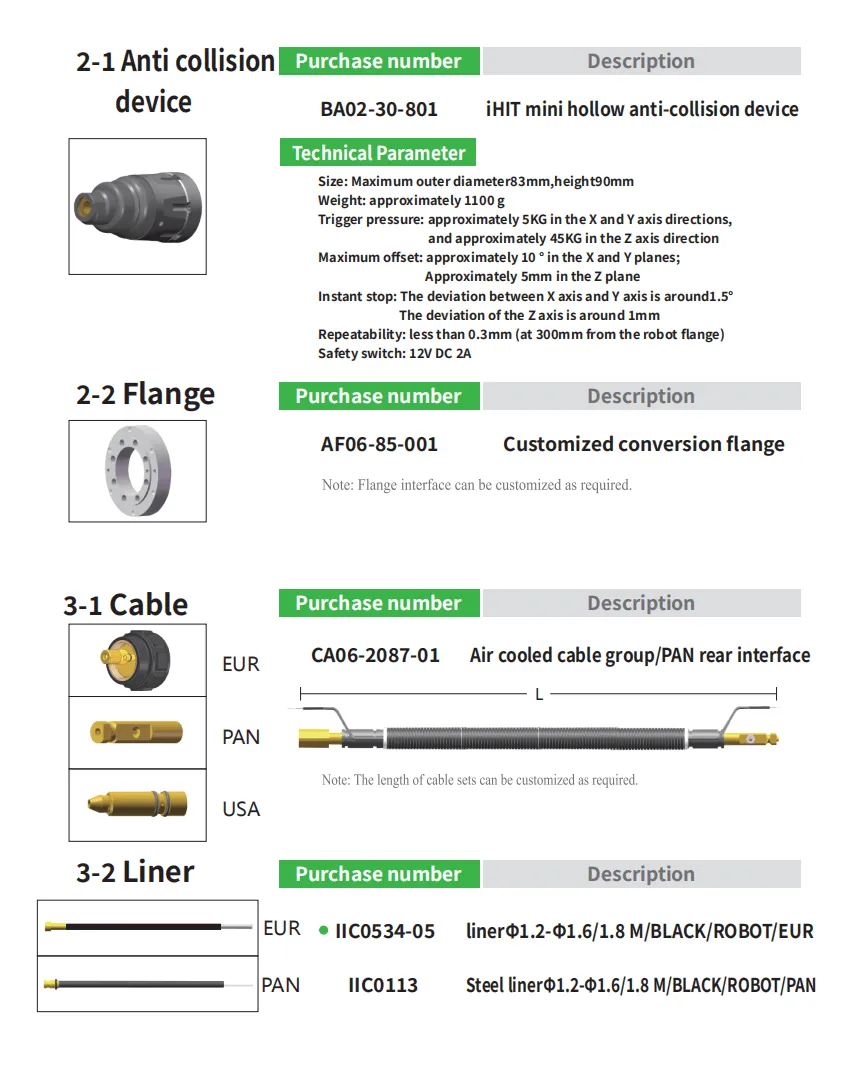

Consumables procurement code(with”🔴”is the standard configuration)
