TIG 25
Technical Parameter
WATER COOLED
DUTY 100% DC: 250A
DUTY 100% AC:220A
WIRE SIZE :0.5~3.2mm
Procurement code
AOJ1124-101
4M
AOJ1128-101
8M

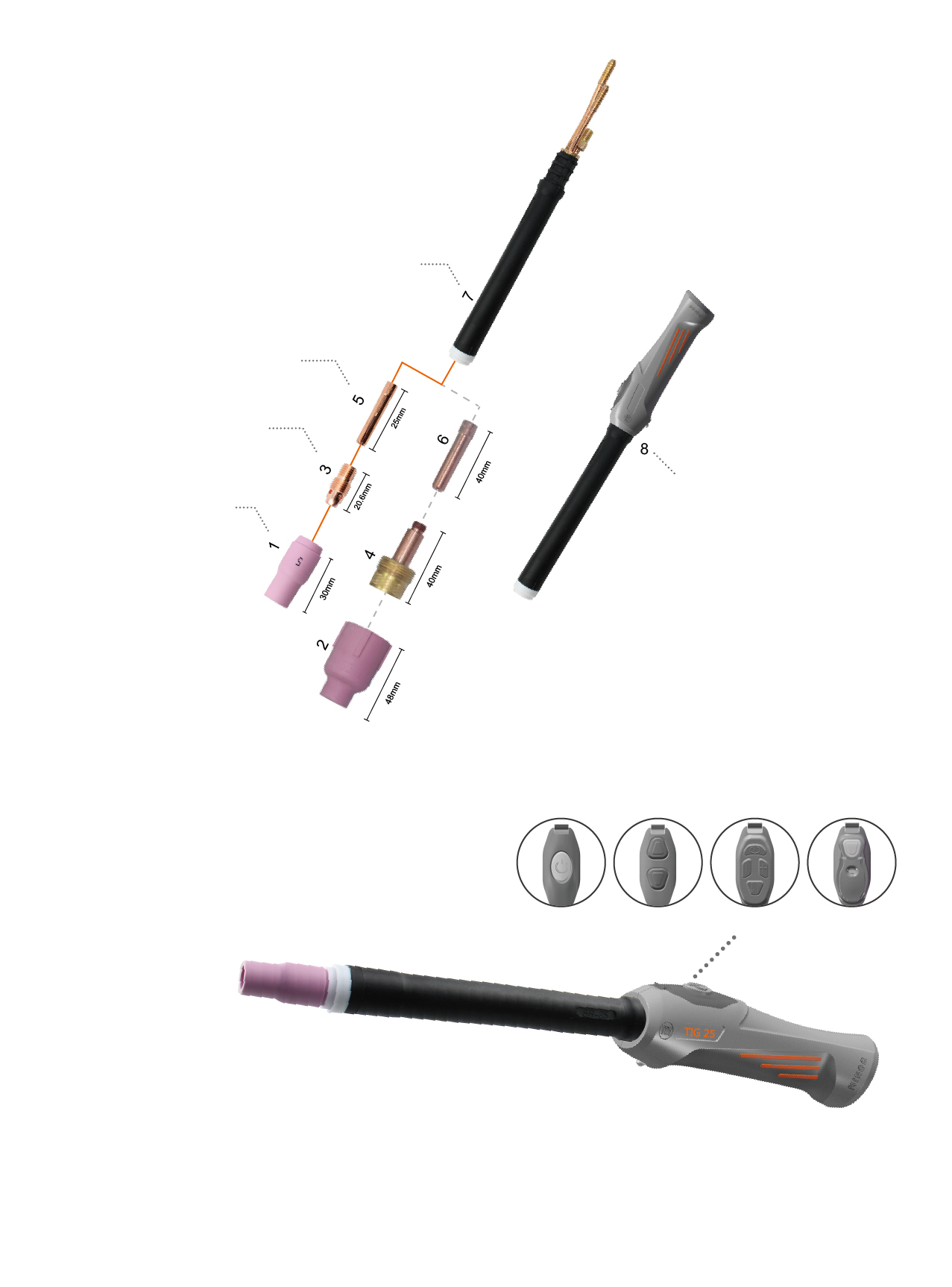

Consumables procurement code(with”🔴”is the standard configuration)
| Position | Code | Ref. | Description |
|---|---|---|---|
| 1.1 | MGS0061 | 13N12 GR8 | 12.5mm |
| 1.2 | MGS0062 | 13N13 GR10 | 16mm |
| 1.3 | MGS0065 | 13N11 GR7 | 11mm |
| 1.4 | MGS0067 | 13N08 GR4 | 6.4mm |
| 🔴1.5 | MGS0068 | 13N09 GR5 | 8mm |
| 1.6 | MGS0069 | 13N10 GR6 | 9.5mm |
| 1.7 | MGS0041 | 796F71 GR4L | 6.5mm |
| 1.8 | MGS0042 | 796F72 GR5L | 8mm |
| 1.9 | MGS0043 | 796F73 GR6L | 9.5mm |
| 1.10 | MGS0045 | 796F70 GR3L | 4mm |
| 2.1 | MGS0020 | 57N75 GR6 | 9.5mm |
| 2.2 | MGS0026 | 57N74 GR8 | 16mm |
| 2.3 | MGS0027 | 53N88 GR10 | 12.5mm |
| 2.4 | MGS0028 | 53N87 GR12 | 19.5mm |
| 2.5 | MGS0029 | 53N89 GR15 | 12.5mm |
| 🔴3.1 | MGF0008-05 | 13N25 | 0.5mm |
| 3.2 | MGF0008-10 | 13N26 | 1.0mm |
| 3.3 | MGF0008-12 | 701.0276 | 1.2mm |
| 3.4 | MGF0008-16 | 13N27 | 2.0mm |
| 3.5 | MGF0008-20 | 13N27M | 2.4mm |
| 3.6 | MGF0008-24 | 13N28 | 3.2mm |
| 3.7 | MGF0008-32 | 13N29 | 4.0mm |
| 4.1 | MGF0005-05 | 45V41 | 1.0mm |
| 4.2 | MGF0005-10 | 45V42 | 1.6mm |
| 4.3 | MGF0005-16 | 45V43 | 2.4mm |
| 4.4 | MGF0005-20 | 70058 | 3.2mm |
| 4.5 | MGF0005-24 | 45V44 | 0.5mm |
| 4.6 | MGF0005-32 | 45V45 | 1.0mm |
| 5.1 | MGU0008-05 | 13N20 | 1.2mm |
| 5.2 | MGU0008-10 | 13N21 | 1.6mm |
| 5.3 | MGU0008-12 | 701.0254 | 2.0mm |
| 5.4 | MGU0008-16 | 13N22 | 2.4mm |
| 5.5 | MGU0008-20 | 70066WT | 3.2mm |
| 5.6 | MGU0008-24 | 13N23 | 0.5mm |
| 5.7 | MGU0008-32 | 13N24 | 1.0mm |
| 6.1 | MGU0005-05 | 53N62 | 1.6mm |
| 6.2 | MGU0005-10 | 53N63 | 2.0mm |
| 6.3 | MGU0005-16 | 53N64 | 2.4mm |
| 6.4 | MGU0005-24 | 24GLC332 | 3.2mm |
| 🔴7 | MGI0075 | WP-25 | |
| 8 | AGI0075-00 |
