MIG24 Gas Cooled CO2 MIG Welding
MIG24 gas-cooled design ensures a 60% duty cycle for both 250A CO2 and 220A mixed gas welding, supporting wire sizes from 0.8 to 1.2mm.
Technical Parameter
GAS COOLED
DUTY CYCLE 60% 250A CO2，220A MIXED GAS
WIRE SIZE 0.8-1.2mm
Procurement code+Optional accessory( ? = A or B or C or D)
ACT2698+（？）
24KD
3M
ACT2699+（？）
24KD
4M
ACT2695+（？）
24KD
5M
ACT2690+（？）
24KD（ALU）
3M
ACT2691+（？）
24KD（ALU）
4M
ACT2692+（？）
24KD（ALU）
5M

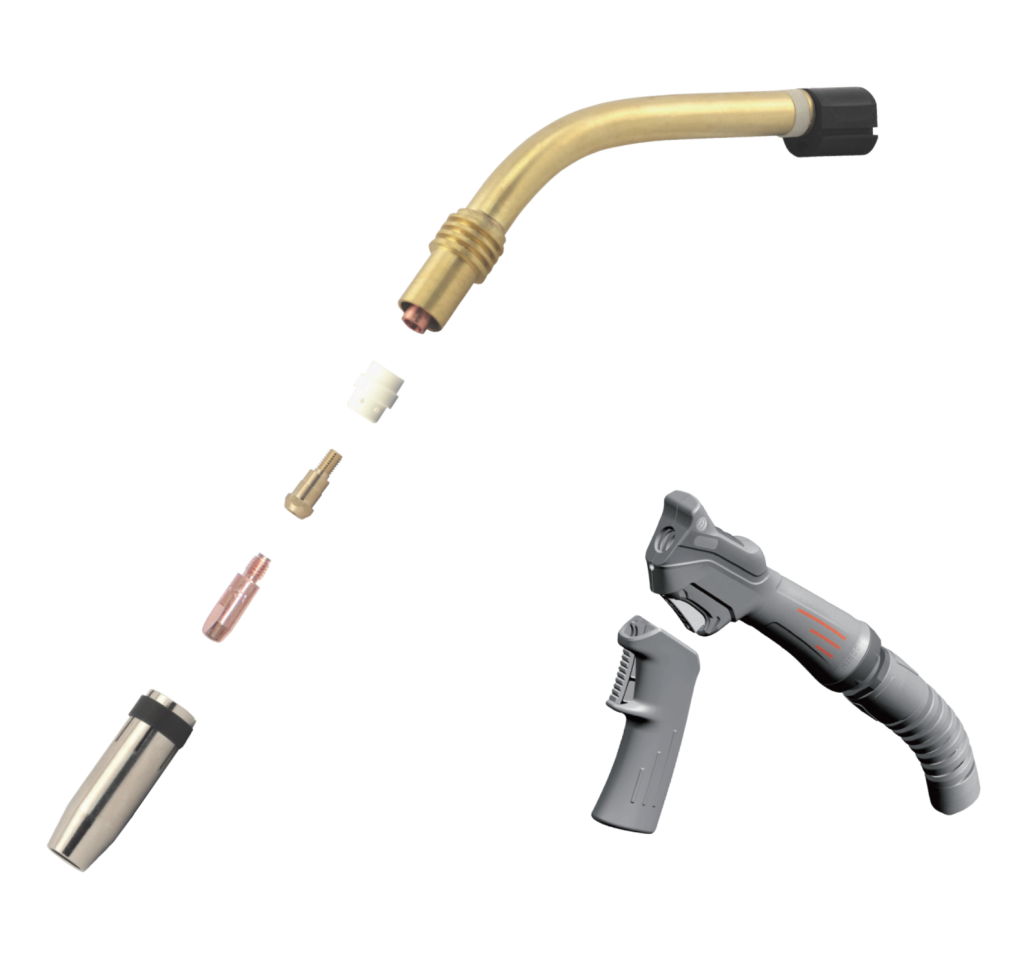

Consumables procurement code(with”🔴”is the standard configuration)
| Position | Code | Ref. | Description |
|---|---|---|---|
| 🔴1 | MCS0806 | 145.0080 | 12.5mm |
| 🔴2 | MCU0004-10 | 140.0242 | 1.0mm |
| 🔴3 | MCU0683 | 142.0003 | |
| 🔴4 | MCF0539 | 012.0183 | |
| 🔴5 | MCZ0630 | 012.0001 | |
| 🔴6.1 | MHQ0433 | Refer to B、C、D | |
| 6.2 | MHQ0433-1 | Refer to A | |
| 7.1 | ACV1001A | Handle kit | |
| 🔴7.2 | ACV1001B | Handle kit | |
| 7.3 | ACV1001C | Handle kit | |
| 7.4 | ACV1001D | Handle kit | |
| 🔴8 | MHJ1003 | Refer to B、C、D | |
| 9 | MHJ1001 | Refer to A | |
| 10 | MTB0055 | ||
| 11.1 | MIC0560 | 124.0026 | 1.0-1.2 3.4M |
| 11.2 | MIC0566 | 124.0031 | 1.0-1.2 4.4M |
| 11.3 | MIC0567 | 124.0035 | 1.0-1.2 5.4M |
